EQUIPMENT

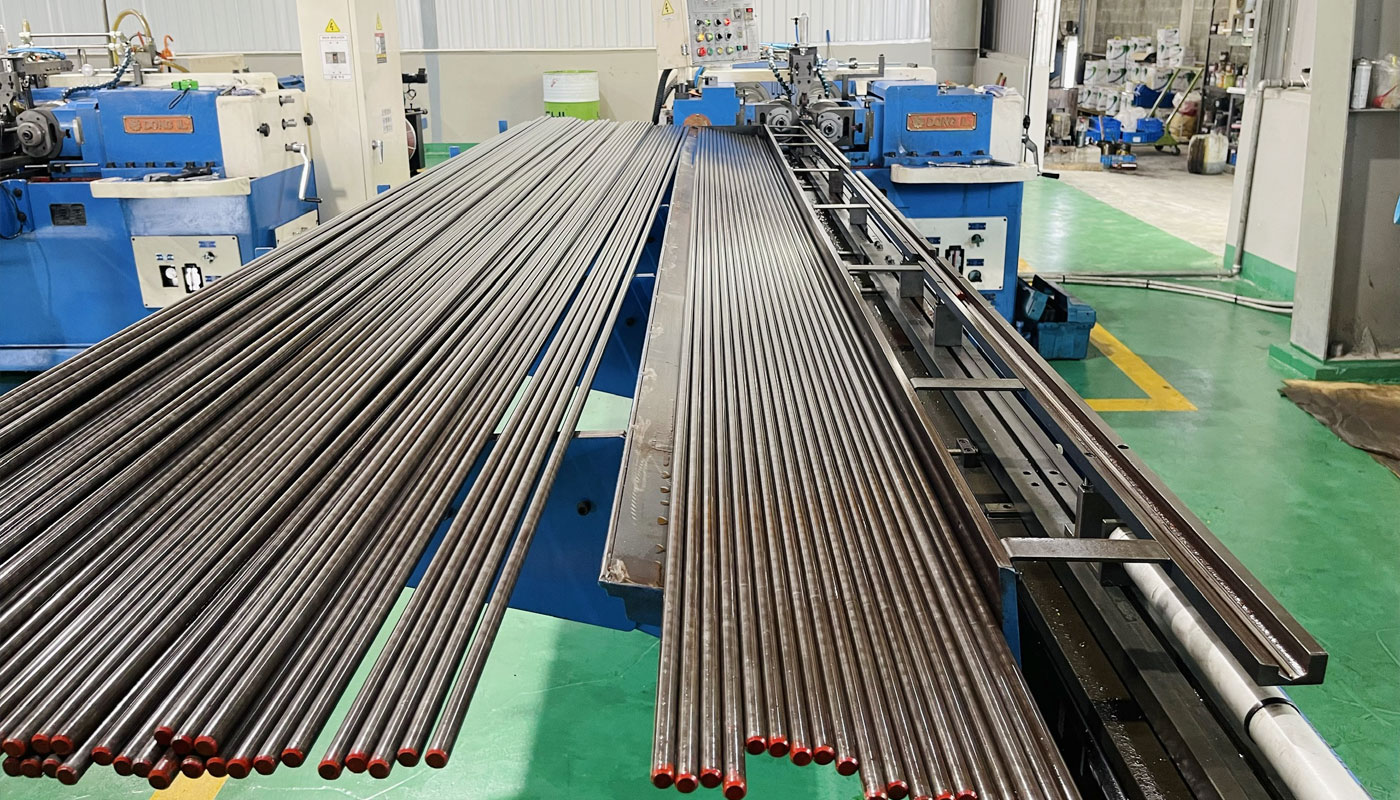

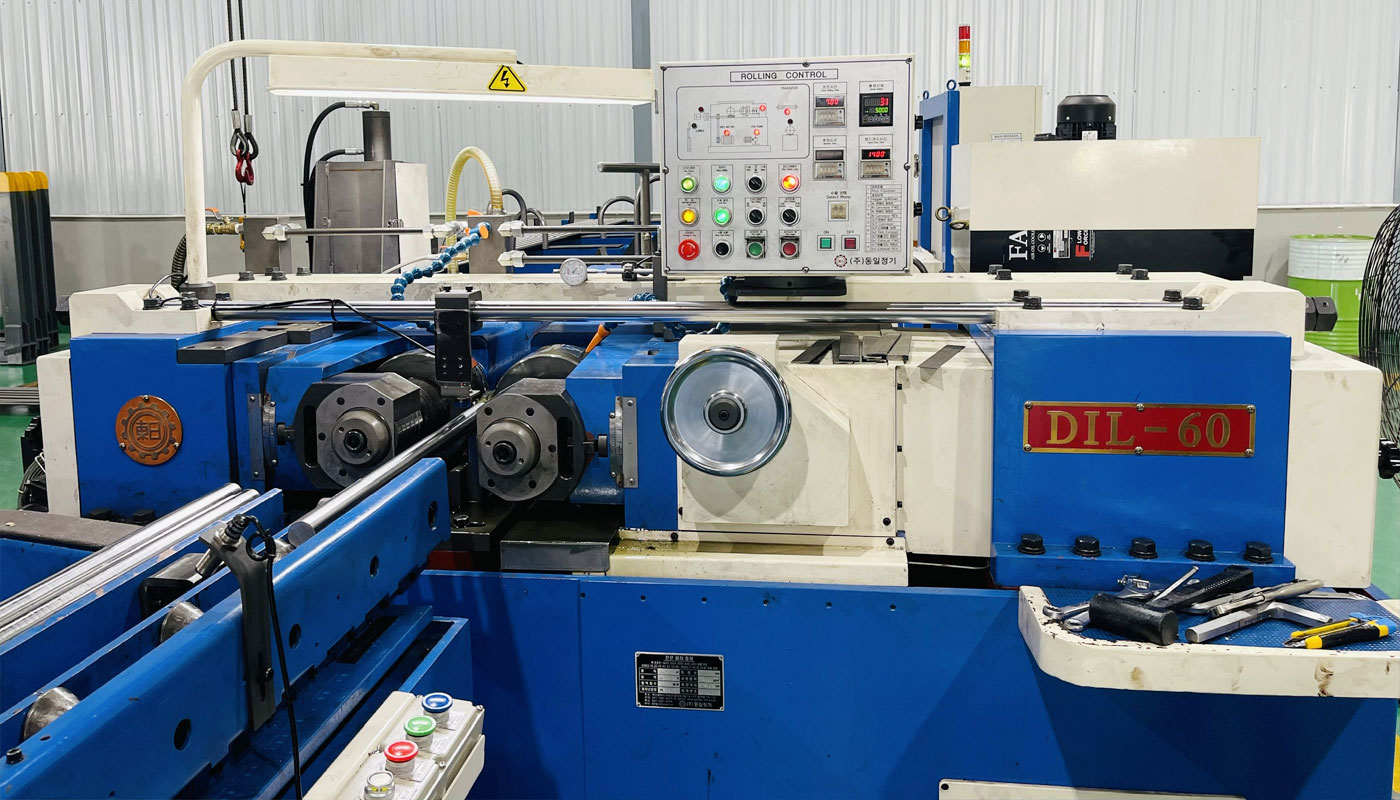

2 Dies Rolling Machine

DIL-20 / DIL-40 / DIL-60 / DIL-80

It is possible to implement max length 200m/min Thread Rolling

20~80 ton power and multi-function

NO. SPEC UNIT DIL-20 DIL-40 DIL-60 DIL-80
1 Size of the maximum diameter of Rolled products Ø 75 100 100 200
2 Size of the maximum length of Rolled products mm 150 200 200 300
3 Size of the maximum pitch of Rolled products mm 5 10 10 10
4 Maximum elongation of Rolled products % 10 10 10 10
5 The number of revolutions of the Roll Dies RPM 20-60 30-60 0-60 0-60
6 Size of the maximum diameter of Roll Dies Ø 200 250 250 300
7 The bore of Roll Die Ø 54 85 85 100(85)
8 Maximum distance to the main axis from the center mm 260 350 350 450
9 Minimum distance to the main axis from the center mm 140 140 140 180
10 Capacity of the Rolling TON 20 40 60 80
11 The main axis motor KW 7.5 15 25 30
1200RPM (60HZ) 1200RPM (60HZ) 1200RPM (6HZ) 1200RPM (6HZ)
12 Hydraulic pump motor KW 2.2 3.7 3.7 3.7 X 3.7
1500/1800RPM (50/60HZ) 1200RPM (50/60HZ) 1200RPM (6HZ) 1200RPM (6HZ)
13 Machine oil pump motor KW 0.1 0.3 0.1 0.5
3000/6000PRM (50/60HZ) 3600RPM (2P/60HZ) 3600RPM (2P) 3600RPM (2P)
14 M/C Size mm 1450 X 1500 X 1555 1500 X 1850 X 1700 800 X 1850 X 1700 2800 X 1850 X 1800
15 Weight Kg 3100 5000 5000 12000
